Junction Box KS-10

KS-10 terminal junction box with 10 terminal pairs (25 A, up to 660 V) for connecting and branching power and instrumentation (I&C) circuits. IP54 protection.

61 790 UZS

Telegram WhatsApp

▸

Type

Terminal junction box

▸

Number of terminals

10 pairs

▸

Rated current

25 A

▸

Operating voltage

~660 V / =440 V

Specifications

Type: Terminal junction box
Number of terminals: 10 pairs
Rated current: 25 A
Operating voltage: ~660 V / =440 V
Protection rating: IP54

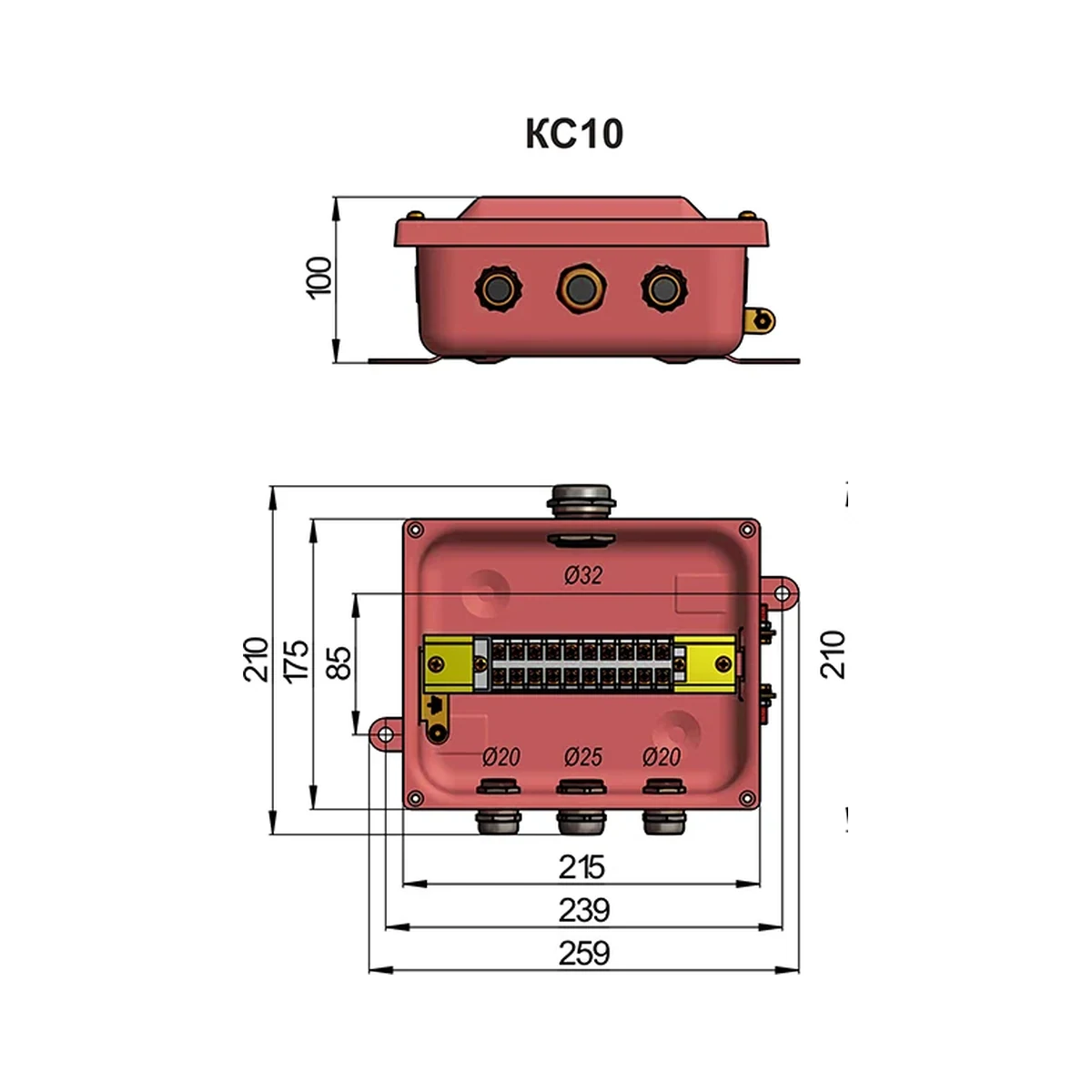

Dimensions: 259 × 210 × 100 mm
Cable entries: Glands Ø20 / Ø25 / Ø32
Application: Power and I&C circuits

The KS-10 terminal junction box is designed for connecting and branching power electrical circuits and instrumentation & control (I&C) circuits made with control and power cables.

In the standard configuration the KS-10 box contains 10 terminal pairs rated at 25 A and operating voltage up to 660 V AC / 440 V DC. The housing with cable glands provides IP54 protection.

Features

10 terminal pairs — connecting and branching up to 10 circuits
Rated terminal current 25 A, operating voltage up to 660 V
IP54 protection — for operation in harsh conditions
Cable glands for sealed connection
Used in power and I&C circuits

Frequently asked questions

Where is the KS-10 box used?

Joining and branching power cables and instrumentation circuits at industrial sites: ten pairs of 25 A terminals for up to 660 V in an IP54 body.

What do the Ø20/25/32 glands mean?

Cable entries for different diameters: the cable enters through a seal, preserving dust and splash protection — the box suits workshops and covered areas.

Can it be used outdoors?

Under a canopy and in protected spots — yes, IP54 handles dust and splashes; for open rain-exposed mounting choose an IP65+ body — we will suggest the option.
