IP cameras

How to choose

• ✓Sensor resolution. At least 4 MP is needed for identifying faces or reading license plates; 2 MP is sufficient for a general overview of premises. Higher resolution requires more storage space and network bandwidth.
• ✓Lens and field of view. A fixed 2.8 mm lens provides wide coverage — suitable for small spaces. A varifocal lens (for example, 2.8–12 mm) allows the angle to be adjusted after installation — convenient for the outdoors and long corridors.
• ✓Infrared illumination. Pay attention to the IR illumination range: for parking lots and perimeters you need 40–50 m or more, while for an office corridor 15–20 m is enough. Some models are equipped with color illumination (ColorVu, ColorHunter) — they provide a color image even at night.
• ✓Enclosure protection rating. For outdoor installation, an IP66 class (dust and moisture protection) is the minimum required. An IK10 vandal-resistant design is relevant for public spaces and entrance areas.
• ✓Power. PoE (Power over Ethernet) simplifies installation — a single cable carries both data and power. Check the standard: PoE (802.3af, up to 15.4 W) or PoE+ (802.3at, up to 30 W) — this determines compatibility with the switch.
• ✓Built-in analytics. Modern cameras support motion detection, line crossing, visitor counting, face and plate recognition. Onboard analytics reduces the load on the server.
• ✓Compatibility with the recorder. Make sure the camera works with your NVR via the ONVIF protocol or within the manufacturer's single ecosystem — this guarantees correct transmission of all functions.

Applications

• ✓Offices and business centers. Monitoring entrance areas, meeting rooms, server rooms and common areas; integration with the access control system.
• ✓Retail facilities. Surveillance of the sales floor, checkout area and warehouse; customer traffic analytics and visitor counting.
• ✓Manufacturing plants and warehouses. Monitoring production lines, the perimeter and loading/unloading areas; monitoring compliance with safety rules.
• ✓Residential complexes and private sites. Video intercom, perimeter security, parking; remote viewing from a mobile phone.
• ✓Government and educational institutions. Monitoring entrances, common areas and the adjacent territory; integration with the city's centralized security systems.
• ✓Transport infrastructure facilities. Surveillance of entrances, parking lots and platforms; recognition of vehicle license plates.

Brands and models in the catalog

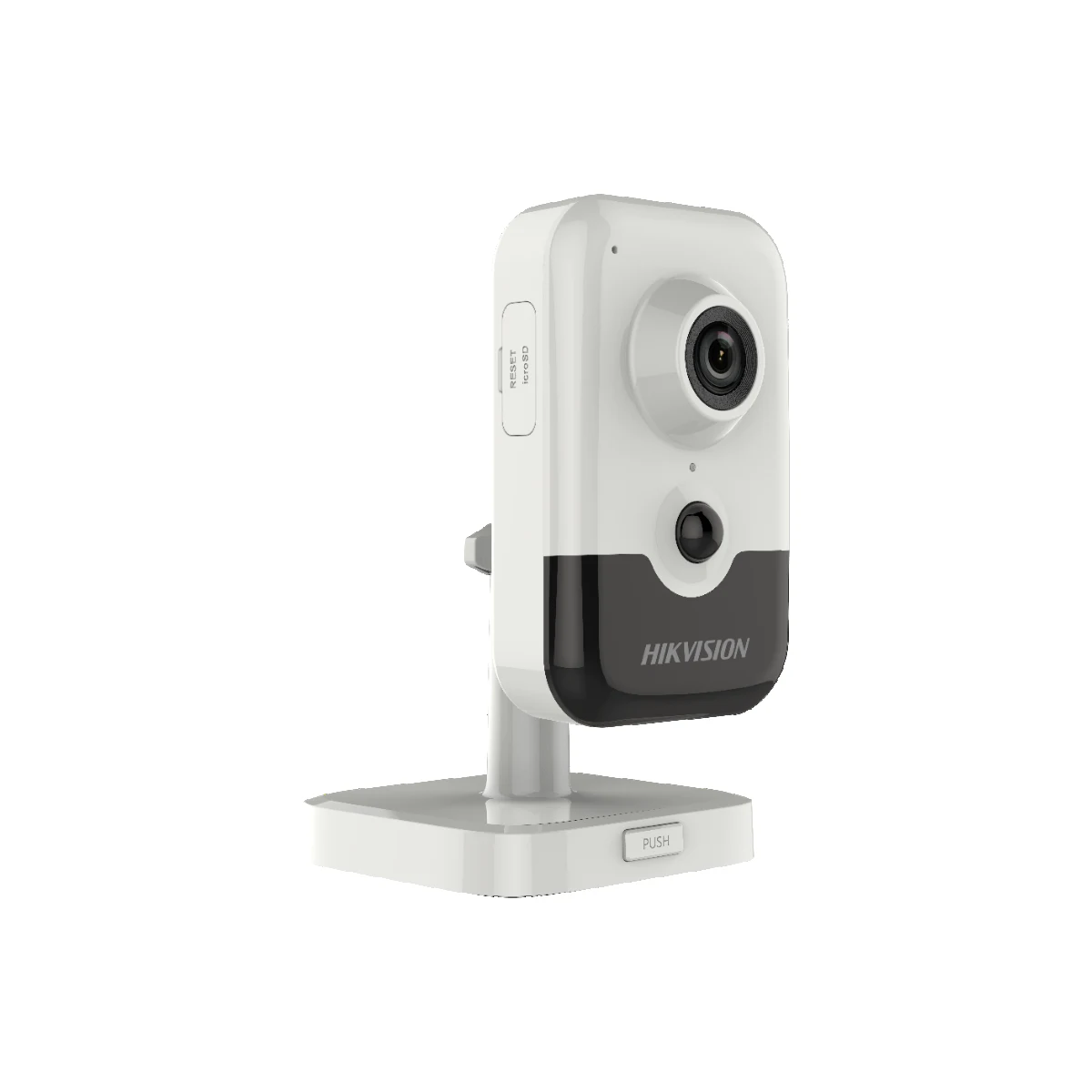

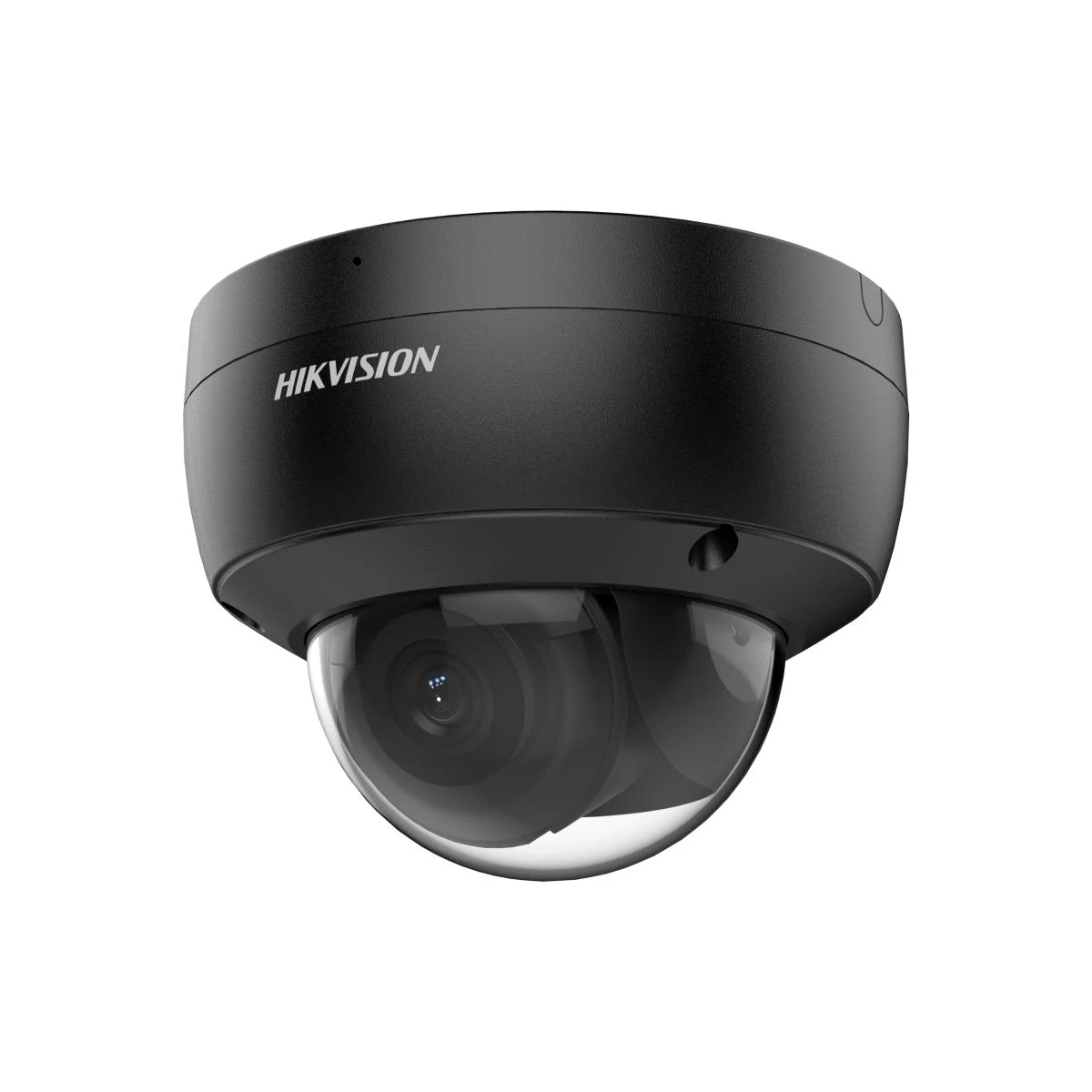

• ✓Hikvision — a world leader in the video surveillance market, widely represented in the SAT Solutions catalog. The lineup includes dome models of the DS-2CD series (for example, DS-2CD2543G2-IS, DS-2CD1143G2-LIU), bullet cameras of the DS-2CD2T and DS-2CD1 series, as well as cube cameras of the DS-2CD2443G2 and DS-2CD2463G2 series. The models cover a resolution range from 2 to 8 MP with support for AcuSense, ColorVu and Deep Learning technologies.
• ✓The AcuSense series (Hikvision) stands out for its intelligent false alarm filtering: the camera distinguishes between people and vehicles, not reacting to animals, leaves or weather interference. This significantly reduces the load on security operators.
• ✓Models with dual-LED illumination (suffix LI, LIUF in the part numbers) provide both infrared and white illumination simultaneously, allowing switching between black-and-white and full-color night modes depending on the task.
• ✓Varifocal models (suffix Z or a range in the part number, for example 2.8–12 mm) make it possible to precisely adjust the field of view after installation — especially valuable at sites with non-standard geometry or large spans.
