Video Walls in Tashkent — Turnkey Installation

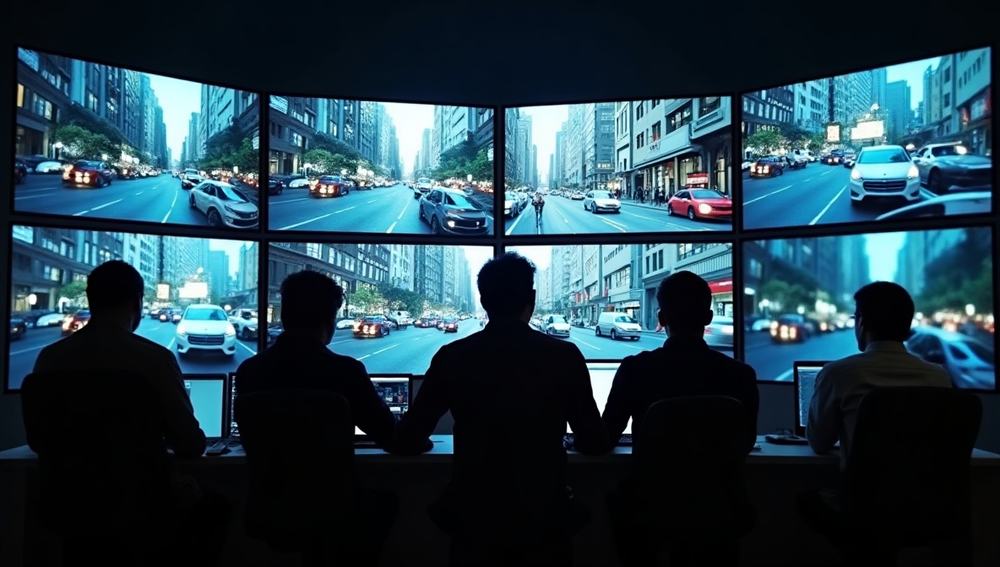

A video wall joins several displays into one seamless screen for control rooms, situation centers, meeting rooms and advertising spaces. SAT Solutions designs and installs video walls for monitoring, presentations and digital signage.

We select narrow-bezel panels or LED modules to match the viewing distance and the light in the room, calculate the configuration, mount brackets that keep every panel reachable, and bring in power and signal routes with spare ports.

We install video walls turnkey across Tashkent and Uzbekistan: from sizing the configuration to training the duty shift, with a warranty on equipment and workmanship.

A video wall is assembled from thin-bezel panels, and the configuration defines the result. A 2×2 wall of four panels is the most common choice for a control room, reception or meeting room: a large picture on a modest wall area. Layouts of 3×3 and up serve situation centers and security desks that keep dozens of cameras on screen at once. Video wall panels are rated for 24/7 duty with brightness headroom — ordinary TVs do not survive that load.

The controller feeds the wall: it takes signals from the CCTV system, computers, laptops and media sources and maps them across the panels — one image across the whole wall, a split into windows, or saved layouts switched with one button. For security this is the key function: the operator keeps the overview and, on an alarm, expands the right camera to full screen. Control runs from a console, a computer or a tablet.

Installation needs wall preparation and serviceability thought through: pop-out brackets for panel access without dismantling the array, ventilation, concealed cabling and backed-up power. The cost depends on the panel count and size, bezel width, controller type and installation complexity. We quote and build the entire structure, including commissioning and layout setup for the duty shift. Beyond the wall itself, the monitoring centre estimate covers operator workstations with two or three displays, a rack UPS and cable routes with spare ports.

LCD panels and LED screens are two different technologies for different tasks. Thin-bezel panels are cheaper per square meter and deliver high pixel density — the optimum for control rooms, where the operator sits meters from the screen and reads fine detail. An LED screen has no seams at all, is brighter and assembles into any size and shape, so it wins in lobbies, halls and shop windows, where the picture is watched from a distance. Viewing distance decides: the closer the viewer, the finer the pixel pitch required.

Typical timelines: a 2×2 video wall is mounted and tuned in one or two days; large configurations and LED screens take from a week including assembly and alignment. From the client we need a wall that bears the structure's weight, power and room air conditioning. After handover we train the duty shift on layouts and take the wall into service: panel diagnostics, cleaning, swapping a failed module from the spare pool without stopping the rest of the wall.
