Industry solution
Warehouse CCTV and security systems
Security systems for warehouses and logistics centers: CCTV of receiving and dispatch areas, loading control, access control for staff and vehicles, license plate recognition at the gates.
What's included
Scope of work
- System design based on the warehouse layout
- CCTV of receiving, dispatch and racking areas
- Loading control linked to warehouse operations
- Access control for staff and ANPR at the gates
- Commissioning, training and service
Typical solutions
Three typical warehouse solutions
Every site is priced individually: describe the task or send a plan — we will return a quote with an exact estimate within one business day.
Receiving and dispatch
Warehouse, distribution center
- Ramp cameras with a readable plate
- ANPR at the entrance, tied to waybills
- Search by time and gate
- Clip export for claims
Time: 1–2 weeks
Full warehouse coverage
A logistics complex
- Cameras along aisles and at row ends
- Cold zones — heated cameras
- A separate network for video
- An archive from 30 days
Time: 2–4 weeks
Warehouse + access + records
3PL, e-commerce, manufacturing

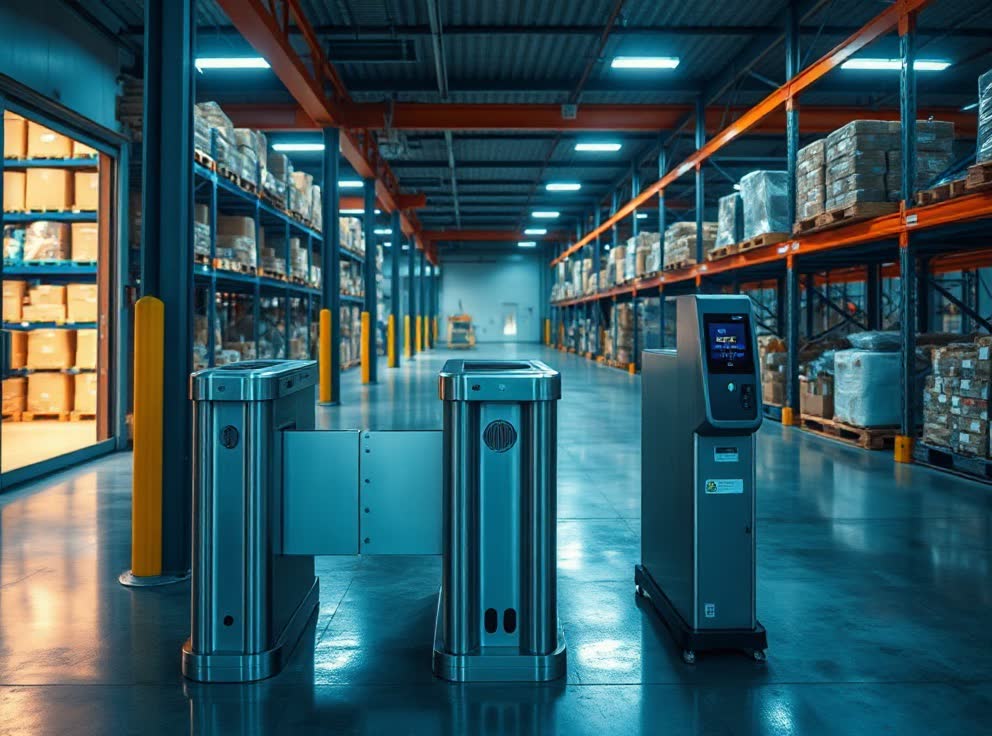

- Access control to service zones
- Shift time attendance
- Panic buttons and an intrusion alarm
- A single monitoring post
Time: per design
How we work
From request to a controlled warehouse — 5 steps
Warehouse walkthrough
ramps, aisles, cold zones — free
A quote by zone
receiving and dispatch first
Contract and work windows
installation without stopping the warehouse
Installation and binding
search by time and gate
Handover and training
clip export for claims
Equipment
Cameras and networks for warehouse logistics
Hikvision and Dahua with WDR for ramps, ANPR cameras, MikroTik switches, ZKTeco access control — from stock:
Site specifics

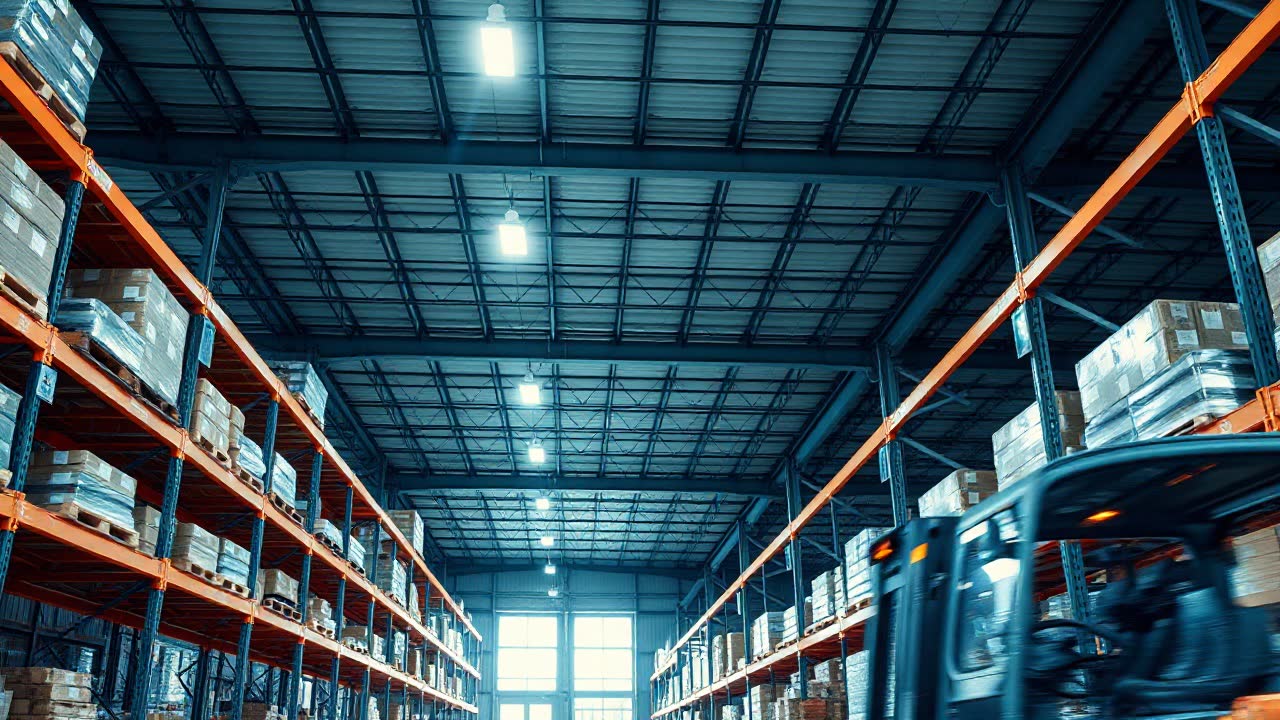

A warehouse is narrow aisles between racks up to 12 m tall. A ceiling camera in the aisle sees only the tops of pallets, so we place cameras along the aisles and at row ends, and cover receiving and dispatch zones separately.

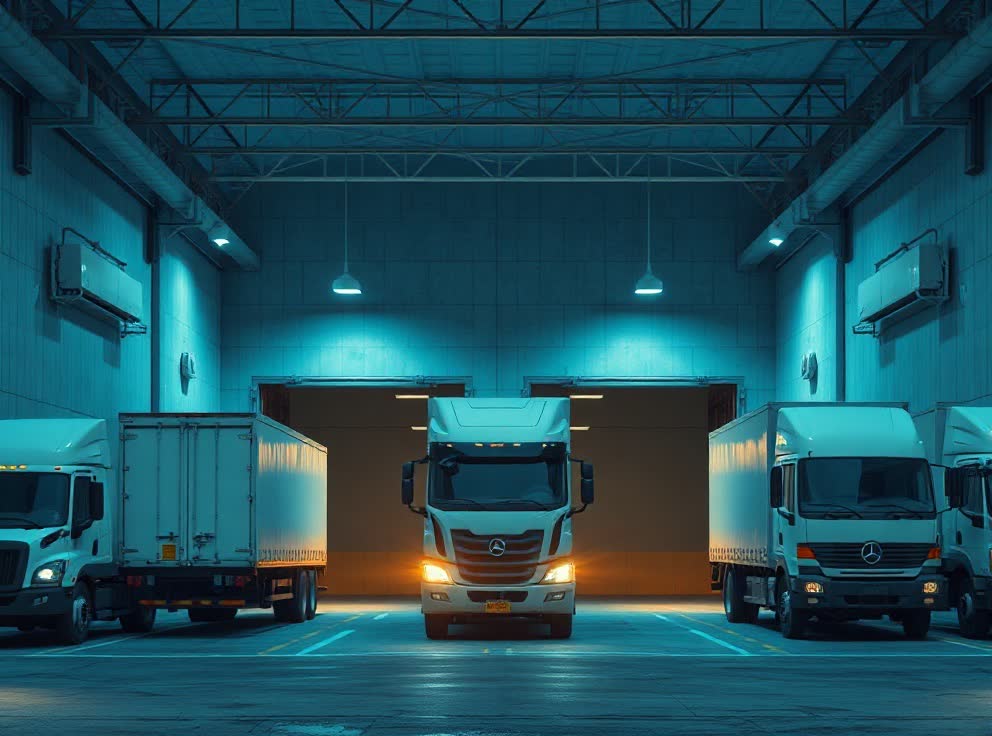

Disputes almost always arise at receiving and dispatch. On the ramps we install cameras with a clear view of the truck plate and the unloading zone, add ANPR at the entrance and tie the event to the waybill by time.
In cold zones and on ramps condensate kills ordinary cameras. We use models with an extended temperature range and sealed glands, and move power supplies into the warm zone.
How we run the project
- 1Layout for the warehouse topology
We take the floor plan with rack placement and storage zones, calculate view overlaps and choose focal lengths for the aisle length — otherwise pallet labels are unreadable on video.
- 2Installation by zones
We start with receiving and dispatch so the result shows immediately, then move to storage and the perimeter. Cables run along existing trays so as not to hinder forklifts.
- 3Binding to warehouse operations
We configure search by event time and by gate: a security officer finds the needed dispatch in a minute instead of scrubbing hours of footage.
- 4Training and procedures
We show storekeepers and guards how to export a clip for a supplier claim and leave a short instruction at the workplace.
Challenges and how we solve them
At aisle turns the machinery regularly clips structures. We lift cameras above the mast working zone and protect runs with metal conduit up to 3 m.
Open gates give backlight by day, and a person in the doorway becomes a silhouette. We use wide-dynamic-range cameras and turn the angle so the sun does not hit the sensor.
Video floods the channel and storekeepers' data terminals drop. We split the networks and build a separate managed-switch segment for video.
SAT Solutions
Specialist services for this industry
Why large sites trust us
The term depends on the equipment and contract terms. Warranty call-out within one business day.
We work directly with H3C, Hikvision and Dahua: genuine equipment, stock in Tashkent, warranty replacement.
Designers and installers are in-house, not subcontractors. We work across Uzbekistan.
We work with companies and public sector clients: contract, specification, acts, invoices, handover by project.
