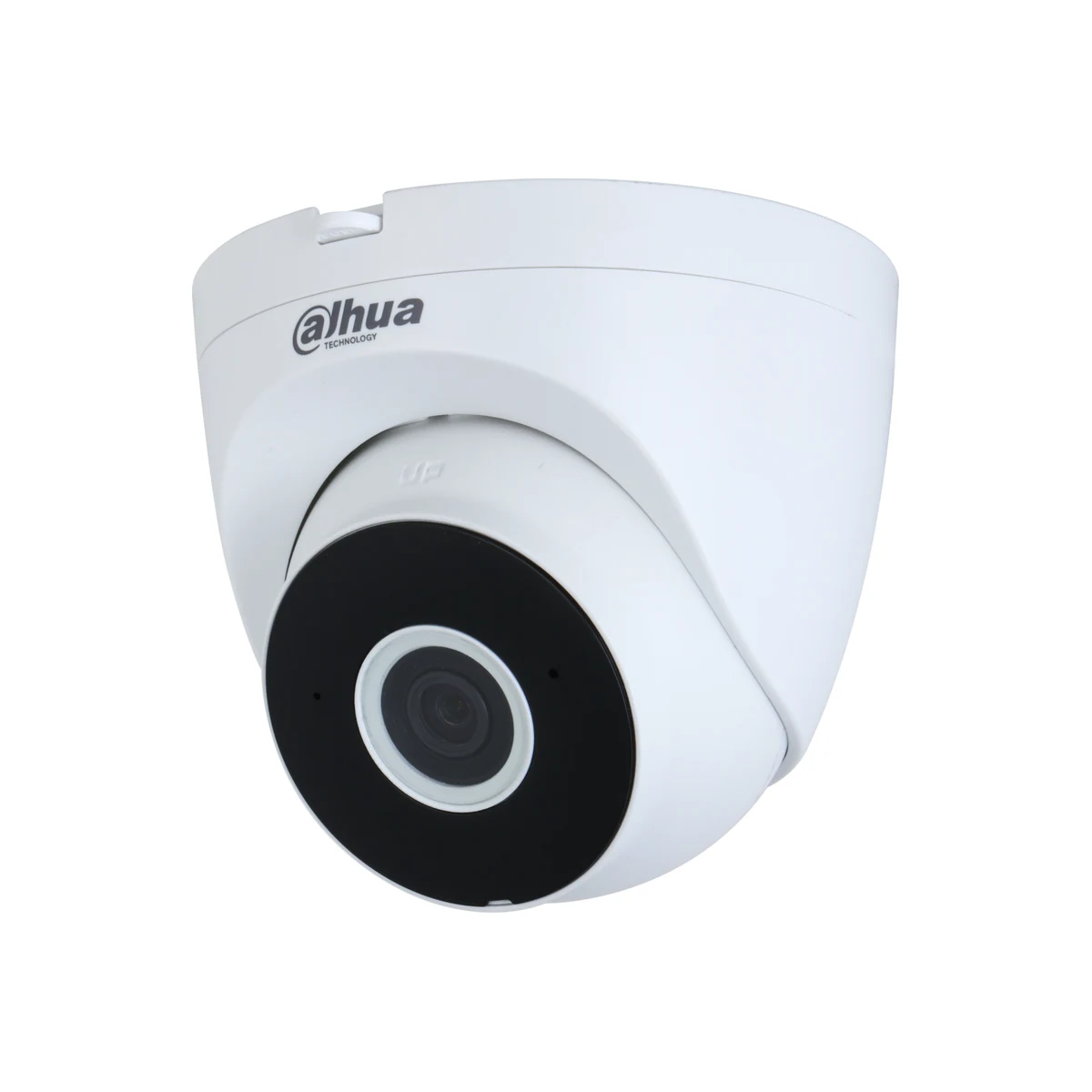

Dome IP camera Dahua IPC-HDW1230DT-SAW

· 2-megapixel 1/2.8-inch CMOS sensor, high-resolution image in low light. · Maximum output 2 MP (1920 × 1080) at 25/30 frames per second. · H.265 codec, high compression ratio, ultra-low bitrate. · Su

466 900 UZS

Telegram WhatsApp

▸

Codecs

H.265

▸

Sensor

1/2.8"

⚡

Power

12V

▸

Resolution

2 MP

Specifications

Codecs: H.265
Sensor: 1/2.8"
Power: 12V
Resolution: 2 MP
Protection class: IP67

Field of view and DORI distances

The angles come from the manufacturer’s documentation for this model. A level’s distance is how deep along the camera axis the required pixel density holds; in practice the result also depends on light, viewing angle and video compression. The values may differ from the DORI in the datasheet: manufacturers calculate it by their own method, here it strictly follows the IEC 62676-4 density thresholds.

Lens	Angle H × V	Detect	Observe	Recognize	Identify
2.8 mm	100° × 53°	32.2 m	12.9 m	6.4 m	3.2 m
3.6 mm	86° × 43°	41.2 m	16.5 m	8.2 m	4.1 m

2.8 mm · 100° × 53°

Detect: 32.2 m
Observe: 12.9 m
Recognize: 6.4 m
Identify: 3.2 m

3.6 mm · 86° × 43°

Detect: 41.2 m
Observe: 16.5 m
Recognize: 8.2 m
Identify: 4.1 m

The angles were cross-checked against the manufacturer’s model page and datasheet.

Calculate for your site →

Description

Dahua IPC-HDW1230DT-SAW is an affordable entry-level eyeball dome IP camera with 2 MP resolution and built-in Wi-Fi. The H.265 codec delivers a high compression ratio while preserving image quality, and the 1/2.8" sensor ensures a clear picture even in low light. The IP67 protection rating allows the camera to be installed both indoors and outdoors.

Advantages

Built-in Wi-Fi: connection without cable routing — simplified installation in finished premises
H.265 codec: economical compression reduces archive size and network load without loss of quality
2 MP resolution (Full HD): sufficient detail for most indoor video surveillance tasks
1/2.8" sensor: increased light sensitivity for quality imaging in twilight conditions
IP67 rating: protected housing for operation in dusty and humid environments
12 V power: a universal connection option compatible with standard power supplies

Applications

Small business and offices: an inexpensive and simple solution for basic video surveillance
Apartments and private homes: self-installation thanks to Wi-Fi connectivity
Stores and cafes: monitoring of the sales floor, checkout and entrance without major installation work
Entrances and lobbies of residential buildings: surveillance in mixed-lighting conditions
Warehouses and utility rooms: basic security in areas with unstable lighting
