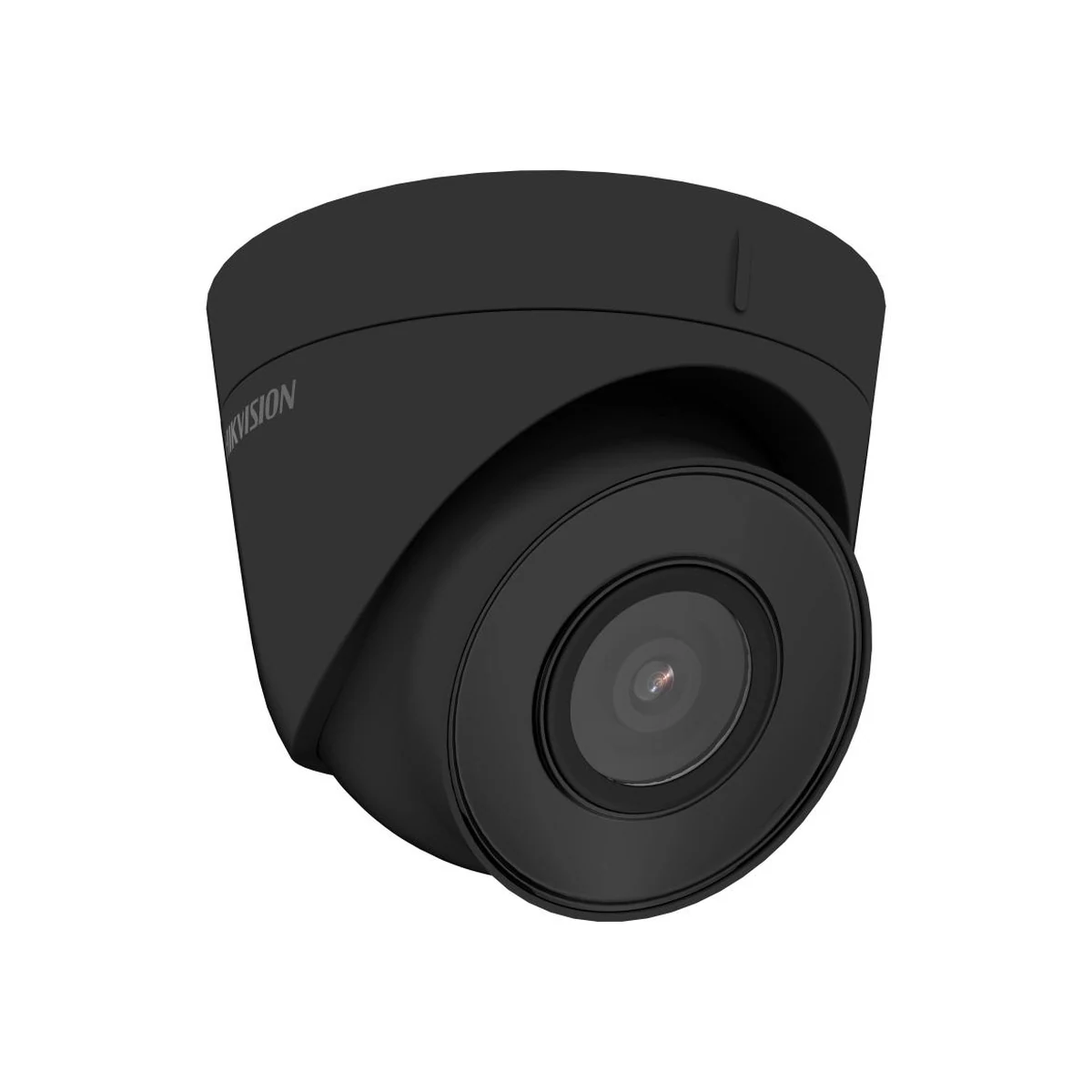

Hikvision DS-2CD1343G2-IUF 2.8mm dome IP camera
Camera with a 1/3" Progressive CMOS sensor and 2560x1440 resolution.
Specifications
- Audio
- built-in
- Sensor
- 1/3" Progressive CMOS
- Power
- DC12V, PoE
- Lens
- 2.8mm
- Resolution
- 4 MP
- IR illumination
- up to 30 m
- Memory card
- SD up to 256 GB
Field of view and DORI distances
The angles come from the manufacturer’s documentation for this model. A level’s distance is how deep along the camera axis the required pixel density holds; in practice the result also depends on light, viewing angle and video compression. The values may differ from the DORI in the datasheet: manufacturers calculate it by their own method, here it strictly follows the IEC 62676-4 density thresholds.
- Detect
- 43.7 m
- Observe
- 17.5 m
- Recognize
- 8.7 m
- Identify
- 4.4 m
The angles were cross-checked against the manufacturer’s model page and datasheet.
Calculate for your site →Description
The Hikvision DS-2CD1343G2-IUF dome IP camera combines 2560×1440 (4 MP) resolution, a built-in microphone, and support for memory cards up to 256 GB — everything needed for a self-sufficient video recording system. IR illumination up to 30 meters provides a clear night image, while the local storage option allows recording to continue even during network failures. The camera is ideal for sites requiring video and audio monitoring without complex infrastructure.
Advantages
- 4 MP resolution (2560×1440): high detail for reliable identification
- Built-in microphone: audio recording of events without external equipment
- Memory card up to 256 GB: local archive as a backup or primary recording channel
- IR illumination up to 30 m: round-the-clock monitoring without additional lighting
- H.265+ and higher codecs: optimal balance of quality and file size
- DC12V or PoE power: simplified installation with minimal cabling
Applications
- Small shops and offices: standalone video and audio recording without an NVR
- Checkout areas: capturing conversations and staff actions with an audio track
- Banks and currency exchange points: an additional recording channel for enhanced control
- Duty rooms and entrances: comprehensive monitoring of entry and events
- Sites with unstable internet: local archive on a memory card as a safeguard
Frequently asked questions
Can the camera be used without a network video recorder?
Does the microphone record sound continuously or only on events?
How much archive fits on a 256 GB card?
