● Hikvision In stock

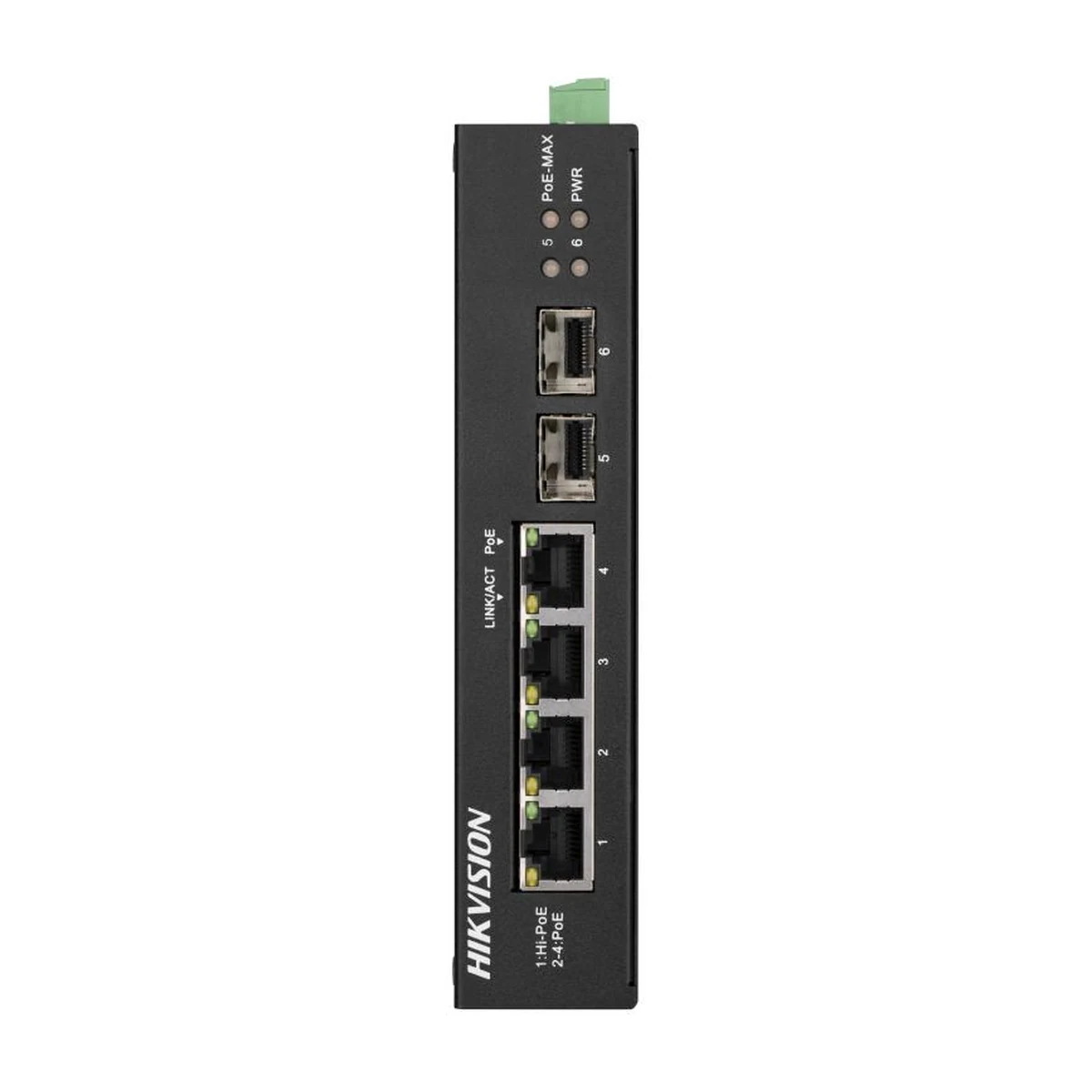

Unmanaged PoE switch Hikvision DS-3T0506HP-E/HS
Unmanaged switch for harsh conditions with Hi-PoE support.
▸
Ports
3 Gigabit PoE + 1 Hi-PoE + 2 SFP
▸
Protection
6kV surge
⚡
PoE ports
max. 30 W (standard), 60 W (Hi-PoE)
⚡
PoE standard
802.3af/at/bt
Specifications
- Ports
- 3 Gigabit PoE + 1 Hi-PoE + 2 SFP
- Protection
- 6kV surge
- PoE ports
- max. 30 W (standard), 60 W (Hi-PoE)
- PoE standard
- 802.3af/at/bt
- PoE range
- up to 300 m
The Hikvision DS-3T0506HP-E/HS unmanaged PoE switch is designed for operation in harsh conditions and provides connection and power for IP cameras, including devices with increased power consumption through the Hi-PoE port with up to 60 W. A data transmission range of up to 300 m over twisted pair significantly expands design possibilities at large sites. Two SFP ports allow connecting the switch to an optical backbone, and 6 kV protection guarantees reliability in any conditions.
Advantages
- Hi-PoE 60 W port — powers PTZ cameras, heated cameras, and other powerful devices
- Three standard PoE ports (up to 30 W) — for ordinary IP cameras and access points
- Two SFP uplinks — connection to an optical backbone and network scaling
- Range up to 300 m — mounting cameras without additional extenders
- 6 kV surge protection — resistance to lightning discharges and voltage spikes
- 802.3af/at/bt support — broad compatibility with PoE equipment
Applications
- Perimeter security with PTZ cameras and cameras with high-power IR illumination
- Industrial sites with remote camera installation points
- Parking lots, warehouses, and territories with extensive cable infrastructure
- Sites with lightning-prone conditions where surge protection is important
- Video surveillance systems connected to an optical backbone
Frequently asked questions
What is Hi-PoE and how does it differ from ordinary PoE+?
Hi-PoE provides up to 60 W per port, while standard PoE+ (802.3at) provides up to 30 W. This makes it possible to power powerful heated PTZ cameras.
Does the switch work at low temperatures?
The device is designed for harsh operating conditions; check the exact temperature range with a manager when ordering.
Does the switch support the PoE watchdog function?
Check the availability of this function with a SAT Solutions specialist when choosing a model.
💬
Need help choosing?
Our engineer will pick the right equipment for your needs and send a quote within one business day.
