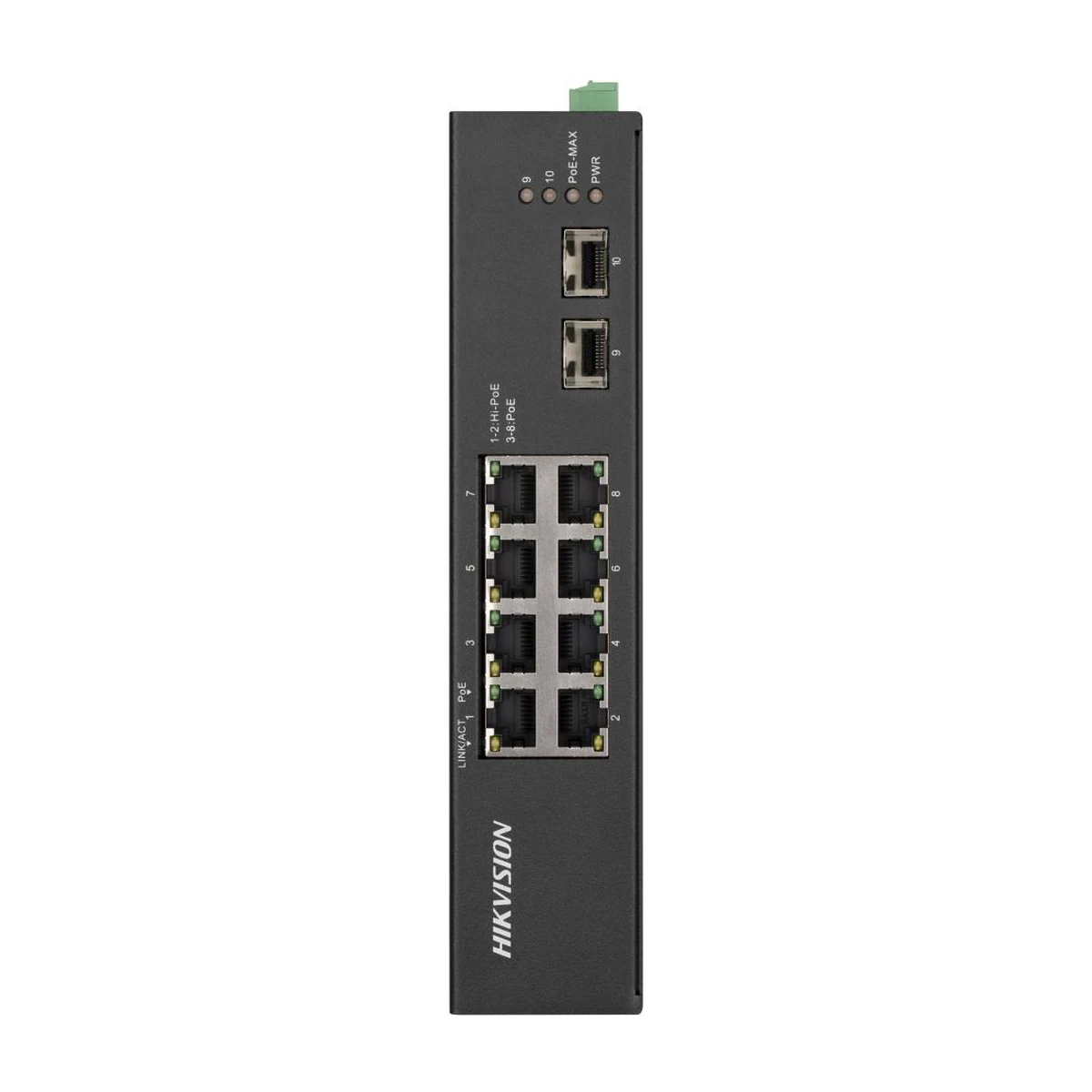

Unmanaged PoE switch Hikvision DS-3T0510HP-E/HS

Unmanaged PoE switch Hikvision DS-3T0510HP-E/HS

Unmanaged PoE switch Hikvision DS-3T0510HP-E/HS: 8 gigabit ports, 2 SFP, Hi-PoE up to 90 W for large facilities. Delivery across Uzbekistan.

1 310 900 UZS

Telegram WhatsApp

⚡

Hi-PoE

90 W (ports 1–2)

▸

Ports

8 Gigabit PoE RJ45 + 2 SFP

▸

Protection

6kV surge

▸

Features

PoE Watchdog, Port Isolation

Specifications

Hi-PoE: 90 W (ports 1–2)
Ports: 8 Gigabit PoE RJ45 + 2 SFP
Protection: 6kV surge
Features: PoE Watchdog, Port Isolation
PoE budget: 110W
PoE range: up to 300 m (ports 7–8)
Temperature: -30~65°C

The Hikvision DS-3T0510HP-E/HS unmanaged PoE switch is a professional L2-level solution for large sites with strict reliability requirements. The device is equipped with eight gigabit PoE RJ45 ports and two SFP uplinks, supports Hi-PoE up to 90 W on the first two ports, and operates in a temperature range from -30 to +65°C. A total PoE budget of 110 W, the POE watchdog function, and port isolation make this switch a reliable foundation for security systems at complex sites.

Advantages

Hi-PoE up to 90 W on ports 1-2 — powering the most powerful PTZ cameras and heated devices
Total PoE budget of 110 W — simultaneous power for several high-load devices
POE watchdog — automatic reboot of frozen IP cameras without operator involvement
Range up to 300 m on ports 7-8 — connecting remote cameras without additional equipment
Operating temperature -30...+65°C — outdoor and industrial operation without failures
6 kV surge protection — resistance to lightning and voltage spikes

Applications

Perimeter security of industrial enterprises and warehouse complexes
Video surveillance systems at open sites with extreme temperatures
Airports, railway stations, and large shopping centers with a large number of PTZ cameras
Oil and gas facilities and production sites
Critical infrastructure with continuity-of-operation requirements

Frequently asked questions

How does the POE watchdog function work?

The switch periodically checks the availability of connected PoE devices and, if there is no response, automatically turns off and on the power to the port, rebooting the frozen device.

Which ports support Long Range 300 m mode?

The extended range mode of up to 300 m is supported on ports 7 and 8.

Is the switch compatible with Hikvision cameras operating on the 802.3bt standard?

Yes, the DS-3T0510HP-E/HS supports the 802.3af, 802.3at, and 802.3bt standards, which ensures compatibility with current Hikvision models.
