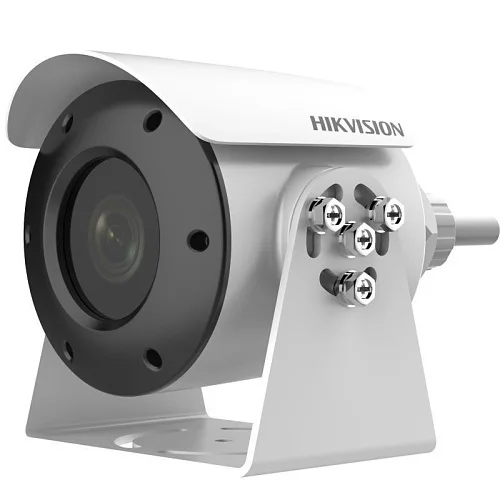

Hikvision DS-2XE6045G0-I 4MP Explosion-Proof IP Camera 4mm
Camera in a stainless-steel explosion-proof housing — for filling stations, oil depots and chemical plants.
Specifications
- Protection
- IP68
- Lens
- 4 mm
- Version
- Explosion-proof, stainless steel
- Application
- Filling stations, oil depots, chemical plants
- Resolution
- 4 MP
Field of view and DORI distances
The angles come from the manufacturer’s documentation for this model. A level’s distance is how deep along the camera axis the required pixel density holds; in practice the result also depends on light, viewing angle and video compression. The values may differ from the DORI in the datasheet: manufacturers calculate it by their own method, here it strictly follows the IEC 62676-4 density thresholds.
- Detect
- 62.3 m
- Observe
- 24.9 m
- Recognize
- 12.5 m
- Identify
- 6.2 m
The angles were cross-checked against the manufacturer’s model page and datasheet.
Calculate for your site →Description
The Hikvision DS-2XE6045G0-I explosion-proof IP camera is built in a certified stainless steel housing: it goes where an ordinary camera is not permitted — above fuel dispensers, in loading areas, at oil depots, gas and chemical plants. The IP68 rating is unfazed by pressure washing or an aggressive environment.
Advantages
- Certified explosion-proof construction permits installation in hazardous zones
- Stainless steel housing resists aggressive media and pressure washing
- IP68 rating — protection from dust and prolonged immersion
- 4 MP resolution with IR illumination gives a detailed image around the clock
- The 4 mm lens balances coverage and detail across a working area
Applications
- Petrol and gas filling stations
- Oil depots, fuel terminals and loading areas
- Chemical and paint production
- Pump rooms, compressor rooms and paint shops
