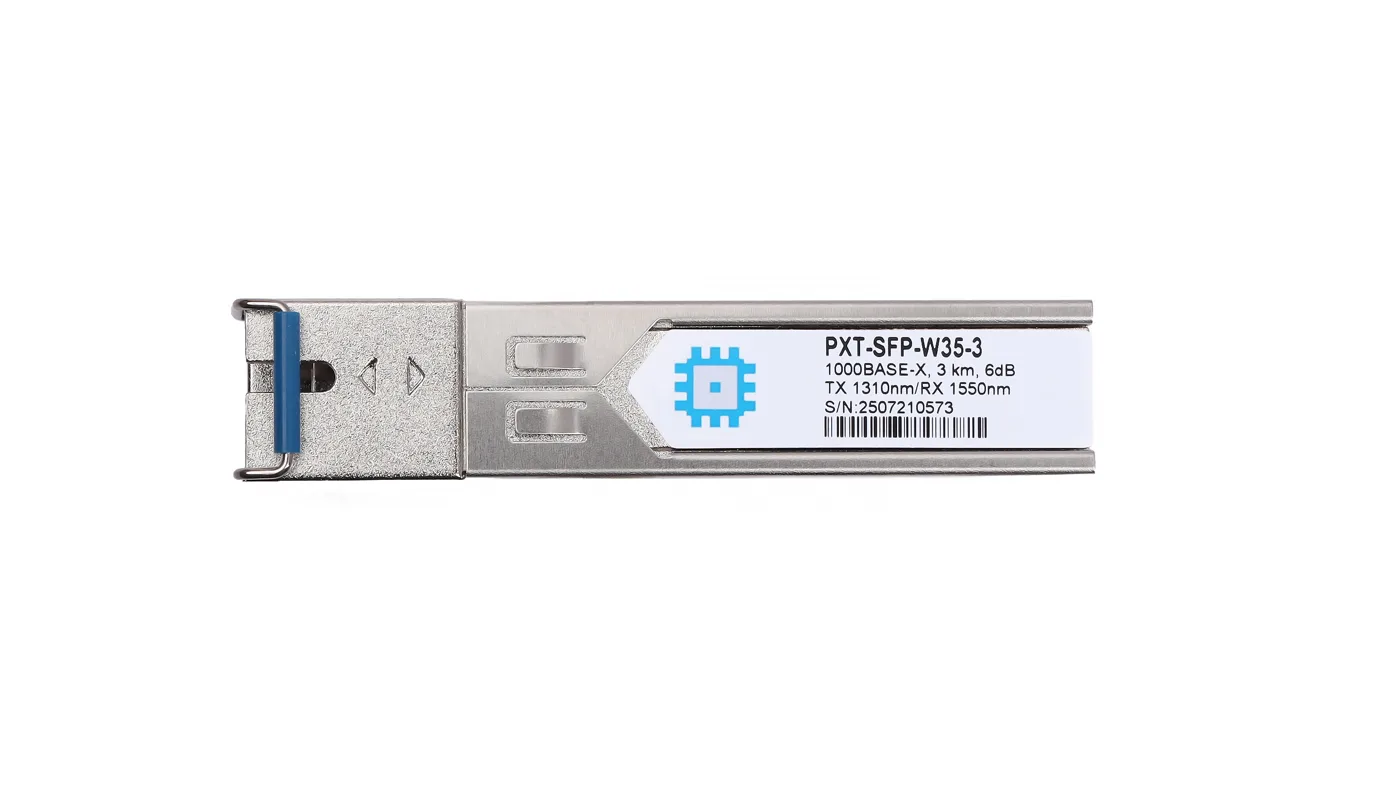

SFP WDM module, range up to 3km (6dB), 1310nm

PXT-SFP-W35-3

Pixietech 1310 nm SFP WDM module, range up to 3 km, 6 dB budget for short single-fiber lines within a facility. A cost-effective solution, delivery across Uzbekistan.

168 900 UZS

Telegram WhatsApp

▸

Type

SFP optical module

⚡

Power budget

6 dB

▸

Part number

PXT-SFP-W35-3

✅

Warranty

1 year

Specifications

Type: SFP optical module
Power budget: 6 dB
Part number: PXT-SFP-W35-3
Warranty: 1 year
Range: up to 3 km
Technology: WDM (single-fiber)
Wavelength: 1310 nm

The Pixietech SFP WDM module at 1310 nm with a range of up to 3 km is an economical solution for short single-fiber optical lines within a single site or between neighboring buildings. The device is suitable for organizations that want to transmit data over existing single-mode fiber without laying additional cable. The compact SFP form factor ensures compatibility with all modern active equipment.

Advantages

Range up to 3 km: optimal for internal and inter-building routes at a single site
Transmission over a single fiber: WDM technology halves cabling infrastructure costs
6 dB power budget: sufficient for routes with a small number of connectors
1310 nm wavelength: works in a pair with a 1550 nm module for full duplex
Standard SFP: hot-swappable, support for a wide range of switches
1-year warranty: confirmed Pixietech quality

Applications

Communication between buildings and floors within a single enterprise
Optical lines inside shopping malls, hotels, and business centers
Connecting remote switches in IP video surveillance systems
Connecting server and communication nodes within a campus

Frequently asked questions

Why is the power budget lower than that of the 20 km modules?

For short routes, a high budget is excessive and leads to higher costs. A 6 dB budget is quite sufficient for routes up to 3 km, accounting for losses at typical connectors.

Can I use this module with two fibers instead of one?

No, the WDM module is designed specifically to work over a single fiber in a pair with a 1550 nm transceiver. For operation over two fibers, standard duplex SFP modules are suitable.

Is there a version with an LC connector?

Yes, a modification with an LC Simplex connector is available under part number PXT-SFP-W35-3-LC. Check availability with SAT Solutions managers.
