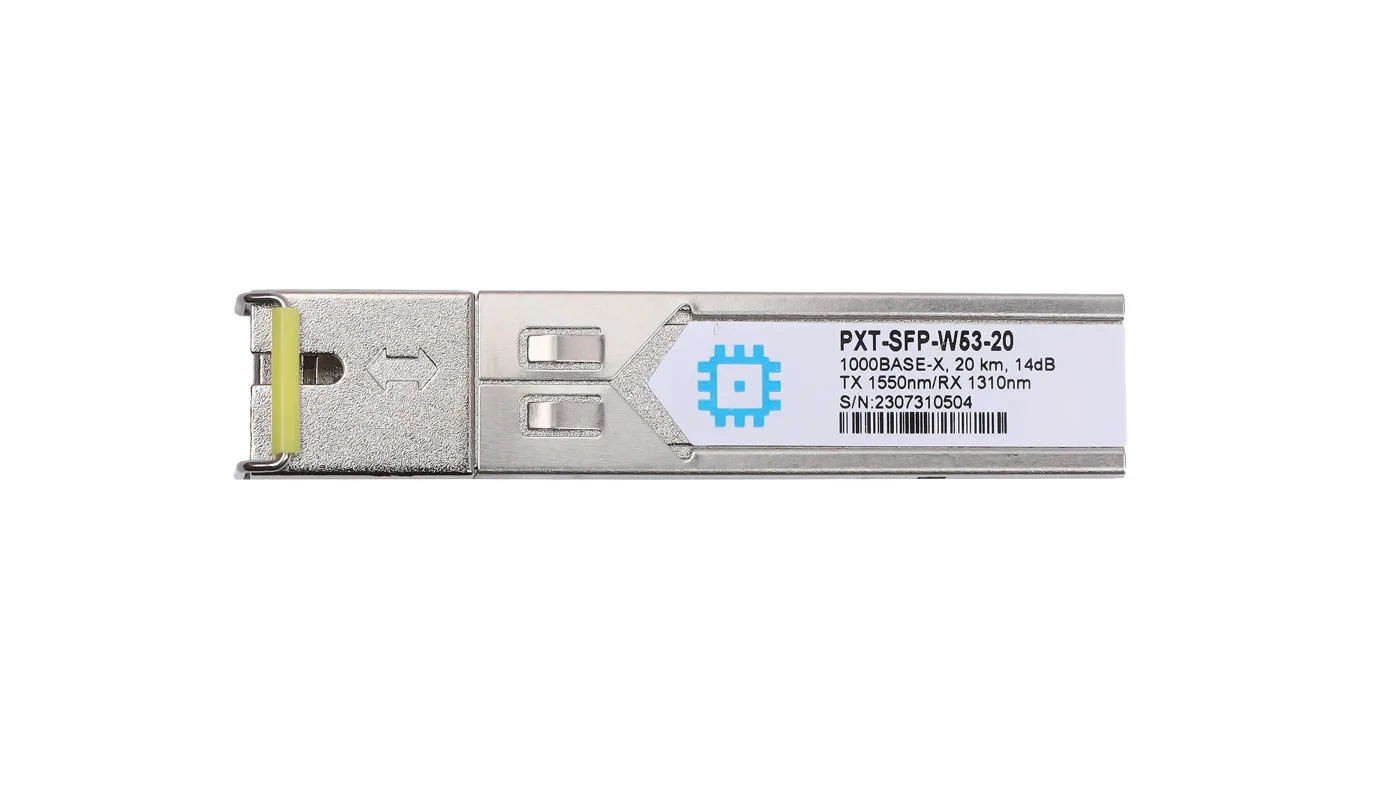

SFP WDM module, range up to 20km (14dB), 1550nm

PXT-SFP-W53-20

Pixietech 1550 nm SFP WDM module for a single-fiber channel up to 20 km. Backbone connectivity without laying extra cable. Buy in Tashkent with warranty.

239 900 UZS

Telegram WhatsApp

▸

Type

SFP optical module

⚡

Power budget

14 dB

▸

Part number

PXT-SFP-W53-20

✅

Warranty

1 year

Specifications

Type: SFP optical module
Power budget: 14 dB
Part number: PXT-SFP-W53-20
Warranty: 1 year
Range: up to 20 km
Technology: WDM (single-fiber)
Wavelength: 1550 nm

The Pixietech SFP WDM module for a 1550 nm wavelength provides optical communication over distances up to 20 km on a single fiber. This is a solution for network engineers and system integrators who need to establish a backbone channel without laying additional cable. WDM technology allows two streams to be transmitted simultaneously over a single strand, reducing infrastructure costs.

Advantages

Range up to 20 km: covers distances between buildings and sites without intermediate equipment
WDM technology: two transmission directions over a single optical fiber, savings on cabling infrastructure
14 dB power budget: sufficient margin for operation on real routes accounting for connectors and splices
1550 nm wavelength: the standard transparency window of single-mode fiber with minimal loss
Standard SFP form factor: compatibility with most switches and routers, hot-swappable
1-year warranty: confirmed quality from Pixietech

Applications

Inter-building connections at industrial enterprises and campus networks
Establishing communication channels between offices or sites within a city
Backbone lines in video surveillance and access control systems
Connecting remote points to the central network node without additional fiber

Frequently asked questions

Do I need to buy two identical modules for a pair to work?

No. A WDM pair is built from two modules with different wavelengths: 1310 nm at one end and 1550 nm at the other. This module (1550 nm) should be used in a pair with a 1310 nm module.

Is the module suitable for multimode cable?

No, the module is designed for single-mode fiber. For multimode cable, you must choose SX modules at 850 nm.

Is the module compatible with third-party equipment, for example MikroTik or Cisco switches?

The module is made in the standard SFP form factor and works with most switches that support this standard. If necessary, check compatibility with a specific model with our specialists.
