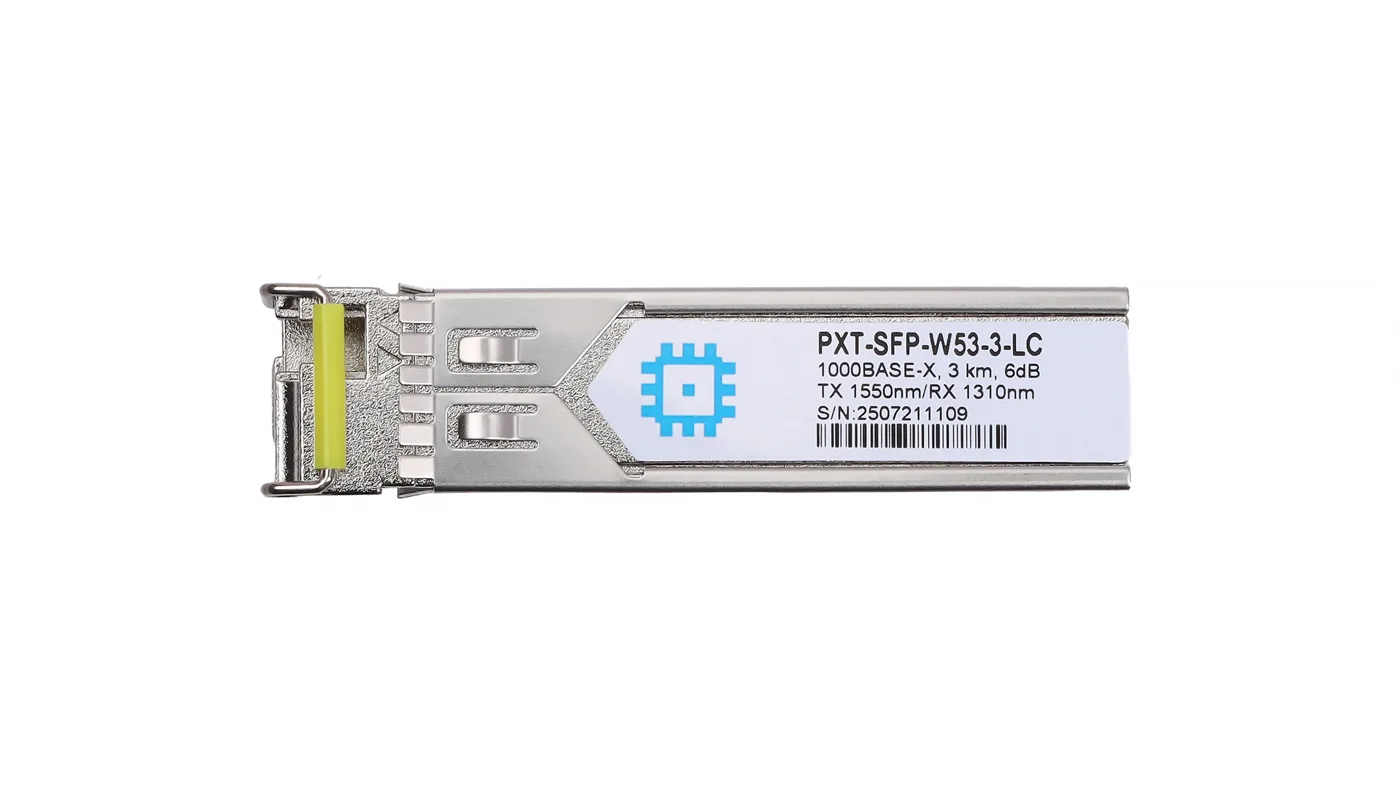

SFP WDM module, range up to 3km (6dB), LC Simplex, 1550nm

PXT-SFP-W53-3-LC

Pixietech 1550 nm SFP WDM module with LC Simplex, range up to 3 km over a single fiber for connectivity within a facility and between buildings. Buy in Tashkent, in stock.

175 900 UZS

Telegram WhatsApp

▸

Type

SFP optical module

⚡

Power budget

6 dB

▸

Connector

LC Simplex

▸

Part number

PXT-SFP-W53-3-LC

Specifications

Type: SFP optical module
Power budget: 6 dB
Connector: LC Simplex
Part number: PXT-SFP-W53-3-LC
Warranty: 1 year
Range: up to 3 km
Technology: WDM (single-fiber)
Wavelength: 1550 nm

The Pixietech SFP WDM module at 1550 nm with an LC Simplex connector is a compact transceiver for single-fiber optical lines with a range of up to 3 km. The device is aimed at engineers and integrators who need to deploy a high-speed communication channel within a single site or between neighboring buildings without spending resources on additional cable. LC Simplex provides convenient and compact installation in mounting cabinets.

Advantages

Range up to 3 km: solves the tasks of on-site and nearby inter-building optical channels
Operation over a single fiber: WDM allows halving the number of fibers used
LC Simplex connector: minimal dimensions, simplified connection in a crowded patch panel
6 dB line budget: sufficient for short routes with a small number of splices and connectors
1550 nm wavelength: paired with the 1310 nm module to establish duplex
1-year warranty: Pixietech quality standard

Applications

Local optical networks in commercial, administrative, and industrial buildings
IP video surveillance with optical connection of switches at remote areas
Data transmission channels in fire safety and security systems
Redundancy of communication channels between neighboring network nodes

Frequently asked questions

Why does this module have a 1550 nm wavelength and not 1310 nm?

The WDM system works on the principle of wavelength separation: one end of the line transmits at 1310 nm and receives at 1550 nm, the other the opposite. This module is installed where transmission at 1550 nm is needed.

Is there a risk of mixing up the pair during installation?

If both ends of the line are equipped with modules of the same wavelength, the connection will not be established. Always check that one end has 1310 nm and the other 1550 nm.

Does SAT Solutions supply modules with patch cords included?

Patch cords and modules can be ordered as a set. Check availability and configuration with the company's managers.
