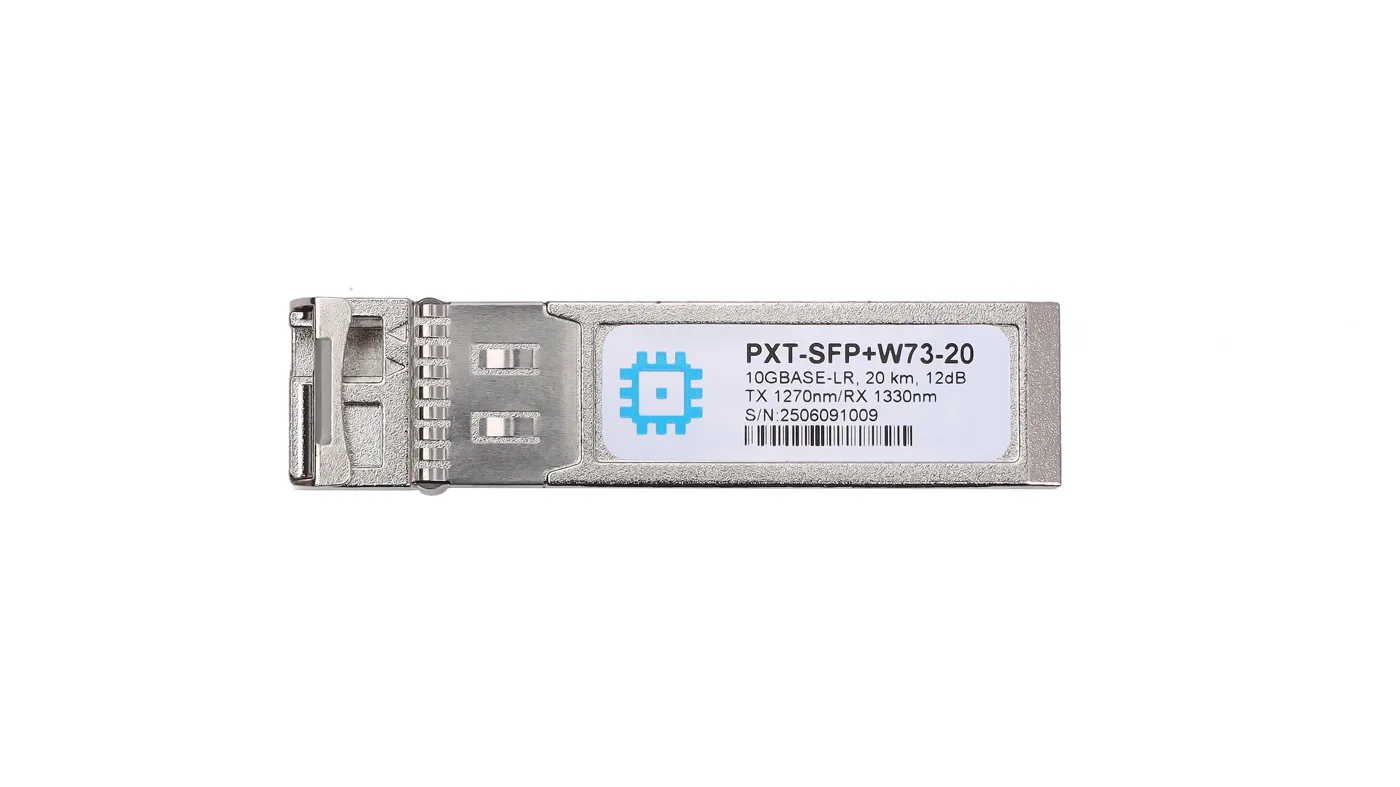

SFP+ WDM 10G module, LC Simplex, up to 20 km (12dB), 1270nm

PXT-SFP+W73-20

Pixietech SFP+ WDM 10G module, 1270 nm, 10 Gbps over a single fiber up to 20 km. Full-duplex BiDi channel. Delivery across Uzbekistan, warranty.

686 900 UZS

Telegram WhatsApp

▸

Type

SFP+ optical module

⚡

Power budget

12 dB

▸

Connector

LC Simplex

▸

Part number

PXT-SFP+W73-20

Specifications

Type: SFP+ optical module
Power budget: 12 dB
Connector: LC Simplex
Part number: PXT-SFP+W73-20
Warranty: 1 year
Speed: 10 Gbps
Range: up to 20 km
Technology: WDM (single-fiber)
Wavelength: 1270 nm

The Pixietech SFP+ WDM 10G module with a 1270 nm wavelength is designed for high-speed data transmission over a single optical fiber over distances up to 20 km. Thanks to WDM (wavelength-division multiplexing) technology, the module allows organizing a full-duplex communication channel over one fiber, which significantly reduces the cost of cable infrastructure. The LC Simplex connector and SFP+ form factor make the device compatible with most modern network equipment.

Advantages

The 10G speed guarantees high throughput for transmitting video, data, and multimedia
The range up to 20 km allows connecting sites within a single city or district
WDM technology halves the need for cable — one fiber replaces two
The LC Simplex connector simplifies installation and minimizes the risk of connection errors
The 1-year warranty provides confidence in the reliability of the equipment
The standard SFP+ form factor ensures broad compatibility with network equipment

Applications

Organizing inter-site communication channels in corporate and departmental networks
Building backbone lines for telecom operators and providers
Integration into distributed surveillance systems with remote nodes
Connecting facilities of transport, energy, and industrial infrastructure
Expanding data center networks with a limited number of optical fibers

Frequently asked questions

Which module should this transceiver be used with in a pair?

The 1270 nm module works in a pair with a 1330 nm module — this combination provides full-duplex WDM communication over a single fiber.

Is the module suitable for outdoor cable laying?

The module itself is installed in active equipment, and the cable type is chosen separately; for outdoor lines, an appropriate armored optical cable is used.

Can this module be purchased with delivery across Uzbekistan?

Yes, SAT Solutions delivers Pixietech equipment in Tashkent and the regions of Uzbekistan.
