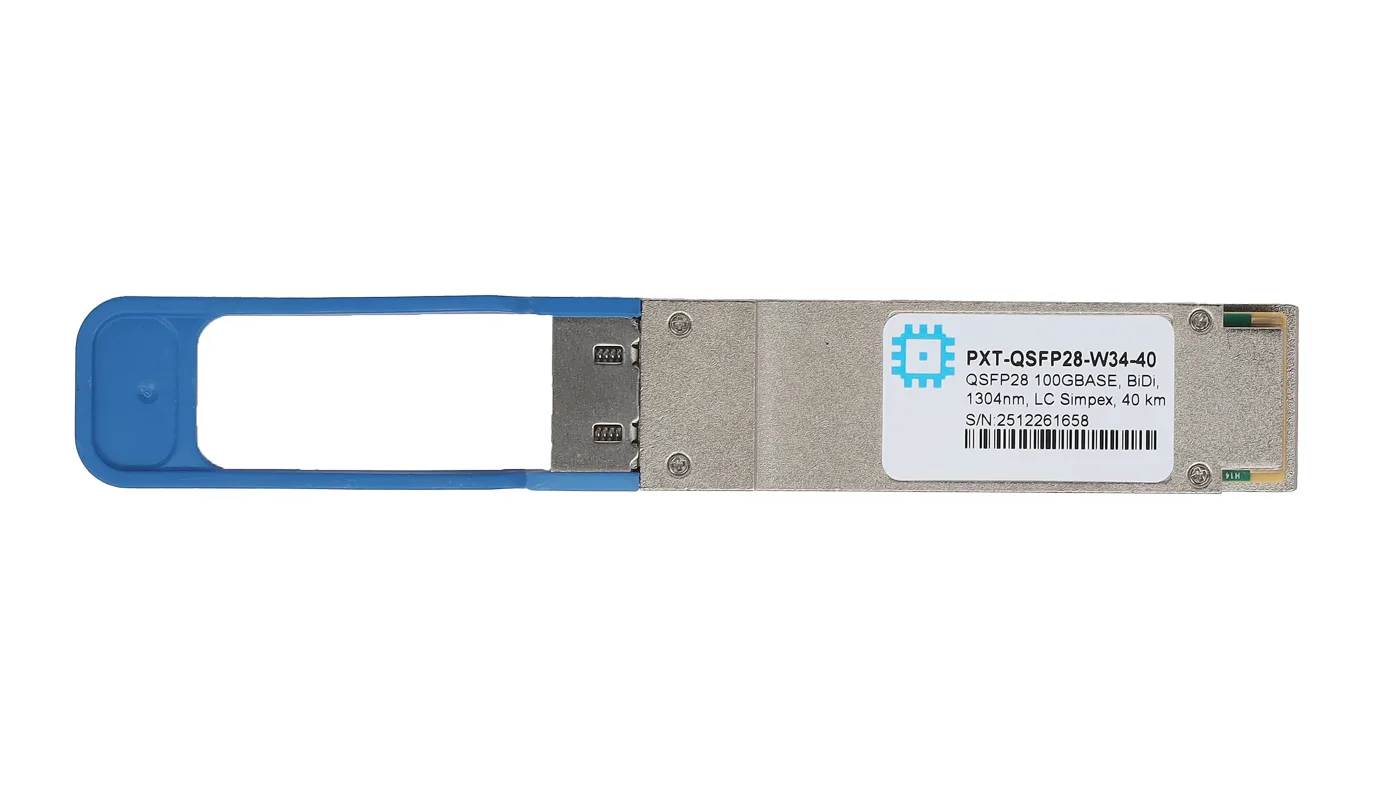

QSFP28 100GBASE module, BiDi, 1304nm, LC Simplex, range up to 40 km

PXT-QSFP28-W34-40

Pixietech QSFP28 100GBASE BiDi module, 1304 nm, LC, up to 40 km: a duplex 100 Gbps channel over a single fiber for links. Buy in Tashkent with delivery.

20 124 900 UZS

Telegram WhatsApp

▸

Type

QSFP28 optical module

▸

Connector

LC Simplex

▸

Part number

PXT-QSFP28-W34-40

✅

Warranty

1 year

Specifications

Type: QSFP28 optical module
Connector: LC Simplex
Part number: PXT-QSFP28-W34-40
Warranty: 1 year
Speed: 100 Gbps
Range: up to 40 km
Technology: BiDi (single-fiber)
Wavelength: 1304 nm

The Pixietech QSFP28 100GBASE BiDi module at a wavelength of 1304 nm is designed for creating high-speed 100-gigabit channels over distances of up to 40 kilometers over a single single-mode fiber. BiDi technology makes it possible to organize a duplex channel without using a second fiber, which is especially advantageous when creating extended inter-city or inter-site lines. The LC Simplex connector simplifies integration into existing infrastructure.

Advantages

Range up to 40 km: covers inter-city and metropolitan distances without amplifiers
Speed 100 Gbit/s: provides high bandwidth for the most demanding tasks
BiDi technology: a single fiber path replaces two, reducing infrastructure cost
Wavelength 1304 nm: suitable for joint use with CWDM multiplexers
LC Simplex connector: convenient connection to standard patch panels
1-year warranty: reliability confirmed by the manufacturer

Applications

Inter-city backbones: carrier lines between cities and districts
Communication of remote facilities: industrial enterprises, energy facilities, transport hubs
Corporate WAN: connecting geographically distributed offices and warehouses
Backup channels: organizing backup high-speed data transmission lines

Frequently asked questions

Can the 1304 nm module be used in a pair with a module of a different wavelength within BiDi?

Yes, in a BiDi pair, each end of the line operates at its own wavelength; the partner module is selected in accordance with the manufacturer's specification.

Are signal amplifiers needed at a distance of 40 km?

For most standard installations, amplifiers are not required at 40 km, however, with high losses in the line it is recommended to perform a power budget calculation.

Where can this module be bought in Uzbekistan?

SAT Solutions delivers Pixietech QSFP28 modules in Tashkent and other cities of Uzbekistan.
