● Pixietech In stock

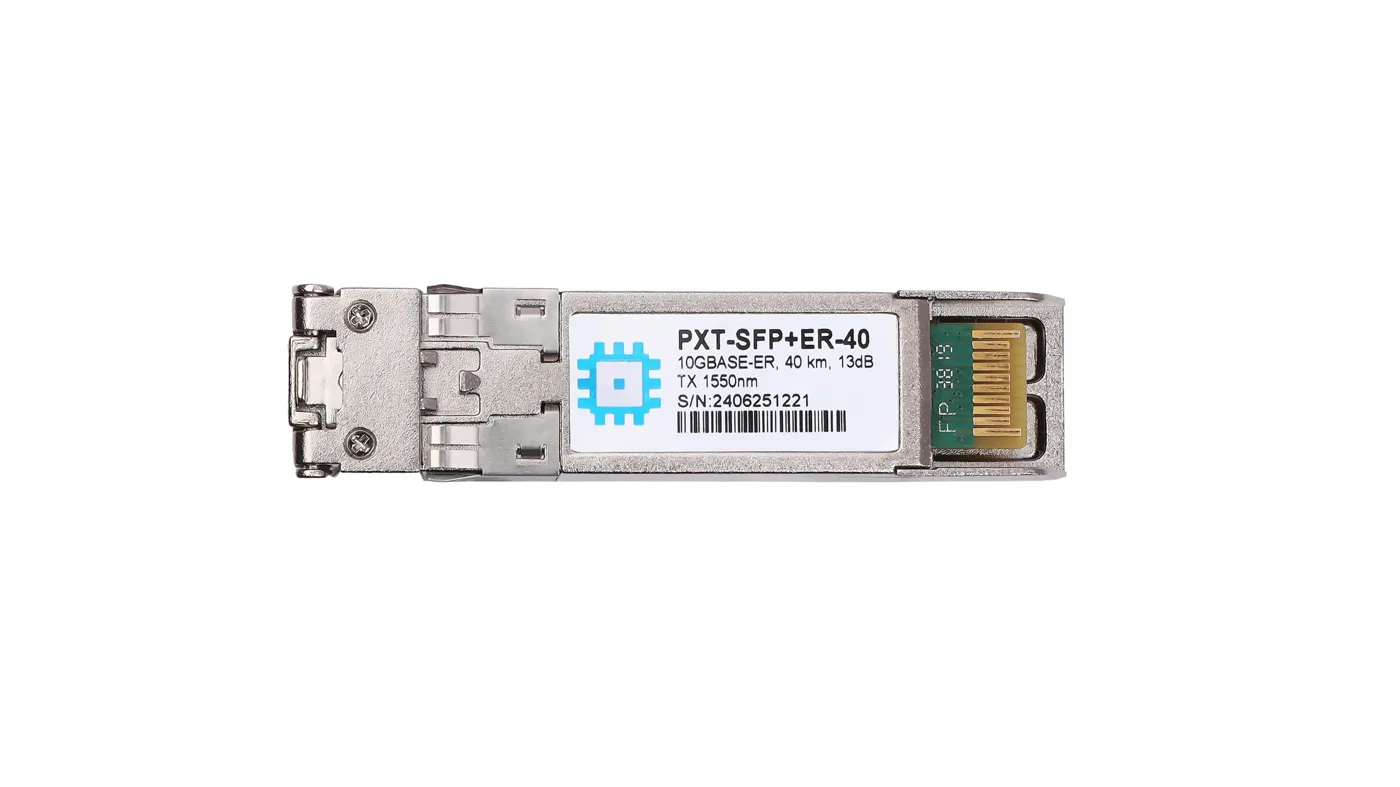

SFP+ 10G module, LC Duplex, up to 40km (15dB), 1550nm
PXT-SFP+ER-40
Pixietech SFP+ 10G optical module, LC Duplex, 1550 nm, range up to 40 km, 15 dB budget for backbone channels. For operators, delivery across Uzbekistan.
▸
Type
SFP+ optical module
⚡
Power budget
15 dB
▸
Connector
LC Duplex
▸
Part number
PXT-SFP+ER-40
Specifications
- Type
- SFP+ optical module
- Power budget
- 15 dB
- Connector
- LC Duplex
- Part number
- PXT-SFP+ER-40
- Warranty
- 1 year
- Speed
- 10 Gbps
- Range
- up to 40 km
- Wavelength
- 1550 nm
Description
The Pixietech SFP+ 10G optical module with an LC Duplex connector and a 1550 nm wavelength provides data transmission over distances up to 40 kilometers via single-mode fiber. An optical budget of 15 dB makes this transceiver one of the most powerful in the lineup for long-haul backbone connections. The solution is in demand among telecom operators, large enterprises, and government structures that need to set up a reliable high-speed channel between remote sites.
Advantages
- Range up to 40 km: provides connectivity between sites in different cities or remote locations
- Speed of 10 Gbit/s: a high-performance backbone for transmitting large volumes of data
- Optical budget of 15 dB: a significant power margin for routes with losses on long lines
- 1550 nm wavelength: optimal for long-haul links on single-mode fiber with minimal attenuation
- LC Duplex connector: compatibility with standard professional optical infrastructure
- 1-year warranty from Pixietech: reliability for mission-critical backbone applications
Applications
- Carrier and ISP networks: connecting aggregation and core nodes over long distances
- Large holdings and enterprises: backbone links between production sites in different cities
- Government and departmental networks: secure long-haul communication channels
- Security systems for large areas: transmission of video and data from sites far from the control center
Frequently asked questions
Why is the 1550 nm wavelength used for long-haul lines rather than 1310 nm?
At a 1550 nm wavelength, attenuation in single-mode fiber is significantly lower, which allows the signal to be transmitted over greater distances without regeneration.
Are amplifiers needed on a 40 km line?
With quality fiber and proper installation, the 15 dB optical budget typically allows operation without amplifiers over distances up to 40 km.
Is the module compatible with equipment from various manufacturers?
The module complies with the SFP+ standard and is compatible with most switches and routers that support 10G; we recommend verifying compatibility against the documentation.
💬
