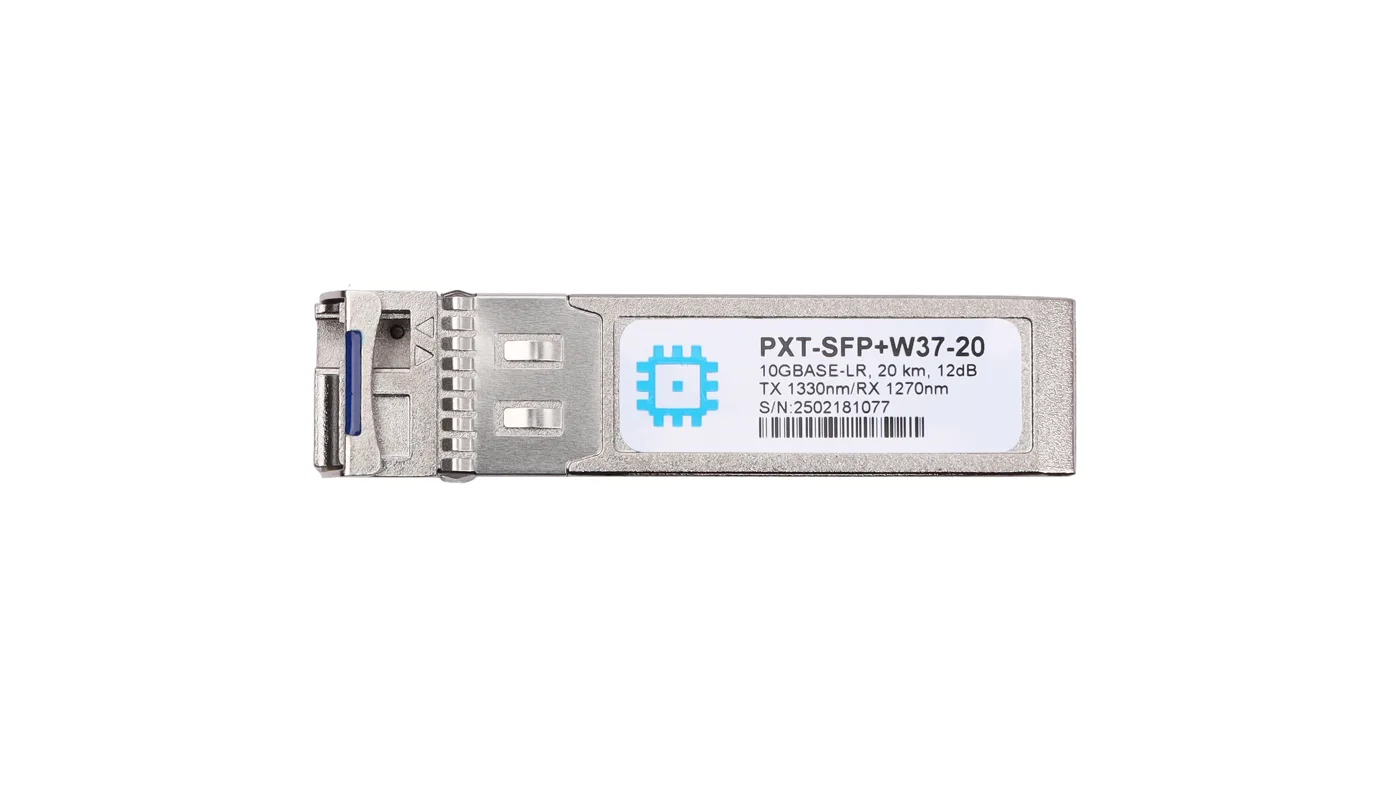

SFP+ WDM 10G module, LC Simplex, up to 20 km (12dB), 1330nm

PXT-SFP+W37-20

Pixietech SFP+ WDM 10G module, 1330 nm, LC Simplex, 10 Gbps over a distance of up to 20 km on a single fiber. Full duplex, buy in Tashkent with warranty.

686 900 UZS

Telegram WhatsApp

▸

Type

SFP+ optical module

⚡

Power budget

12 dB

▸

Connector

LC Simplex

▸

Part number

PXT-SFP+W37-20

Specifications

Type: SFP+ optical module
Power budget: 12 dB
Connector: LC Simplex
Part number: PXT-SFP+W37-20
Warranty: 1 year
Speed: 10 Gbps
Range: up to 20 km
Technology: WDM (single-fiber)
Wavelength: 1330 nm

The Pixietech SFP+ WDM 10G module with a 1330 nm wavelength provides data transmission at a speed of 10 Gbit/s over a single-fiber optical line up to 20 km long. The device works on the principle of wavelength-division multiplexing: one channel in the pair uses 1330 nm, the other 1270 nm, which allows organizing full-duplex communication over a single fiber. Connection via an LC Simplex connector and the standard SFP+ form factor guarantee compatibility with a wide range of switches and routers.

Advantages

The 10G speed provides high throughput for any modern applications
The range up to 20 km covers distances between sites in urban and suburban zones
WDM technology halves the consumption of optical fiber when building a network
LC Simplex — a compact and reliable interface, convenient for installation in rack equipment
The 1-year warranty attests to the quality of the product
Broad compatibility with standard SFP+ slots of leading equipment manufacturers

Applications

Backbone connectivity between offices, warehouses, and production sites
Building urban data transmission networks with a limited number of fibers
Organizing channels in distributed security and surveillance systems
Connecting nodes in the networks of telecom operators and internet providers
Smart city and transport telematics projects

Frequently asked questions

What is the difference between the 1330 nm module and the 1270 nm module?

The difference in wavelength allows two modules to work simultaneously over one fiber in different directions — this is precisely the principle of WDM.

What type of single-mode fiber is suitable for this module?

The module is designed to work with single-mode optical fiber of the G.652 standard or equivalent.

Is a special media converter needed for connection?

No, the module is installed directly into the SFP+ slot of a switch or router without additional converters.
