● Pixietech In stock
SFP+ WDM 10G module, LC Simplex, up to 40 km (16dB), 1330nm
PXT-SFP+W37-40

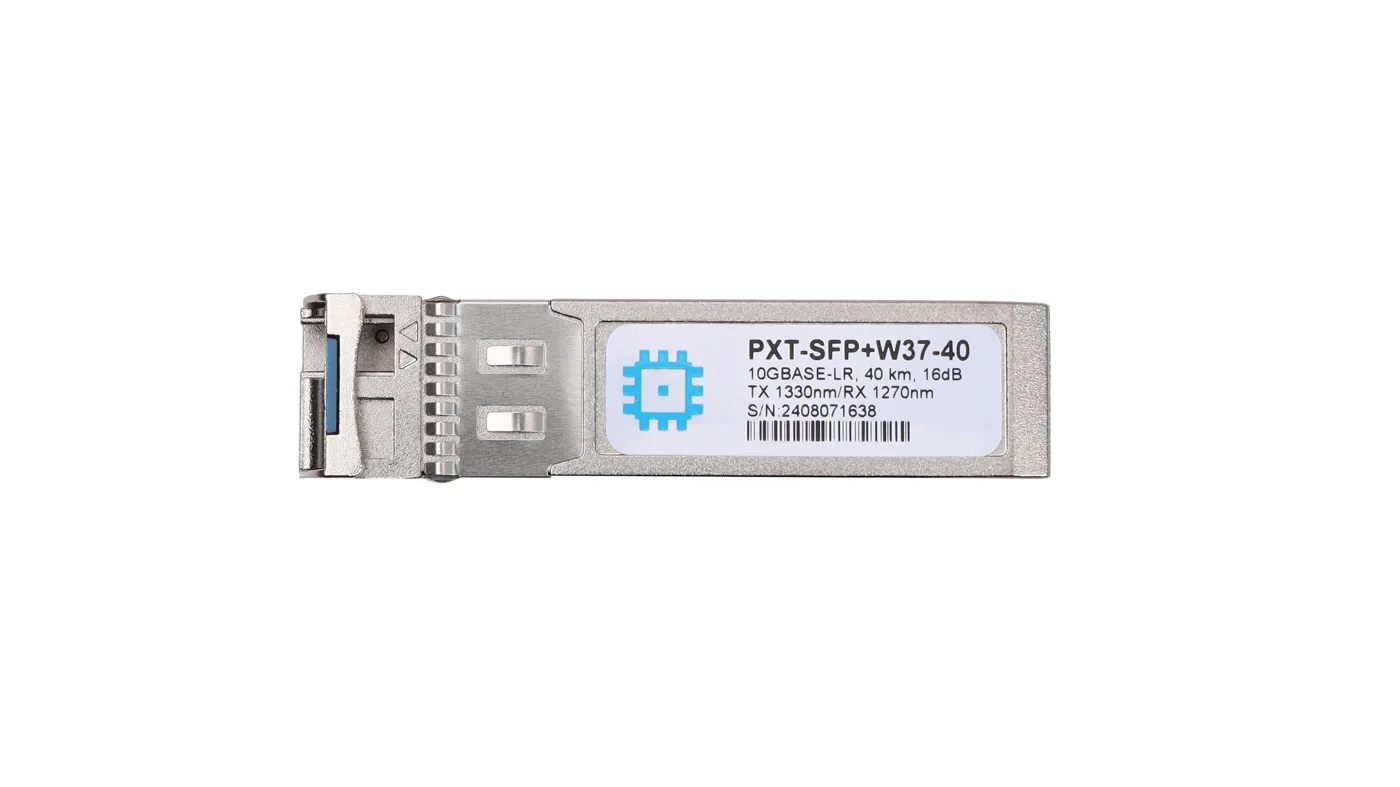

Pixietech SFP+ WDM 10G module, 1330 nm, LC Simplex, 10 Gbps up to 40 km over a single fiber with a 16 dB budget. Backbone channels, delivery across Uzbekistan.
▸
Type
SFP+ optical module
⚡
Power budget
16 dB
▸
Connector
LC Simplex
▸
Part number
PXT-SFP+W37-40
Specifications
- Type
- SFP+ optical module
- Power budget
- 16 dB
- Connector
- LC Simplex
- Part number
- PXT-SFP+W37-40
- Warranty
- 1 year
- Speed
- 10 Gbps
- Range
- up to 40 km
- Technology
- WDM (single-fiber)
- Wavelength
- 1330 nm
The Pixietech SFP+ WDM 10G module with a 1330 nm wavelength provides data transmission at a speed of 10 Gbit/s over distances up to 40 km via a single optical fiber. The device is specially developed for long-haul backbone lines with an optical loss budget up to 16 dB, which allows building reliable communication channels between geographically remote sites. In a pair with a 1270 nm module, it forms a full-duplex WDM channel, halving the need for cable infrastructure.
Advantages
- The range up to 40 km opens up possibilities for building inter-district and intercity channels
- The 10G speed supports simultaneous transmission of video, data, and control signals
- WDM over a single fiber reduces capital expenditures on network construction
- The 16 dB budget ensures stable operation accounting for losses in connectors and splices
- The standard LC Simplex connector is compatible with cross-connects and patch panels of most manufacturers
- The 1-year warranty guarantees quality and after-sales support
Applications
- Backbone links between large sites and nodes in cities and districts
- Transport and energy companies with distributed infrastructure
- Telecom operators building urban and regional networks
- Surveillance and security systems at extended sites
- Backup of communication channels for critical infrastructure facilities
Frequently asked questions
How do you select a pair for this module?
The 1330 nm module is used in a pair with a 1270 nm module — together they provide bidirectional data transmission over a single fiber.
Does a 40 km line require the use of optical amplifiers?
If the line's actual losses match the 16 dB budget, amplifiers are not needed; if losses are higher, their installation should be considered.
Does the module support hot swapping?
SFP+ modules in most cases support hot swapping — without turning off the active equipment, however this depends on the specific chassis.
💬
